1100 1200 Gold Wet Pan Mill chilean mill grinding machine

  • 1100 1200 Gold Wet Pan Mill chilean mill grinding machine
  • 1100 1200 Gold Wet Pan Mill chilean mill grinding machine
  • 1100 1200 Gold Wet Pan Mill chilean mill grinding machine
Place of Origin China
Brand Name Ascend
Certification CE
Model Number 1100 1200
Document Product Brochure PDF
Minimum Order Quantity 1 set
Price 4000-5000 USD Per Set
Packaging Details wooden box in container
Delivery Time 10 working days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 100 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Gold Pan Mill Machine Industry Gold Ore Grinding
Function Gold Milling Machine Material Casting Iron/steel Alloy
Color Customized Application Beneficiation Equipment
Highlight

zinc Gold Wet Pan Mill

,

Wet pan stone grinding mill

,

chilean mill grinding machine
Leave a Message
Product Description

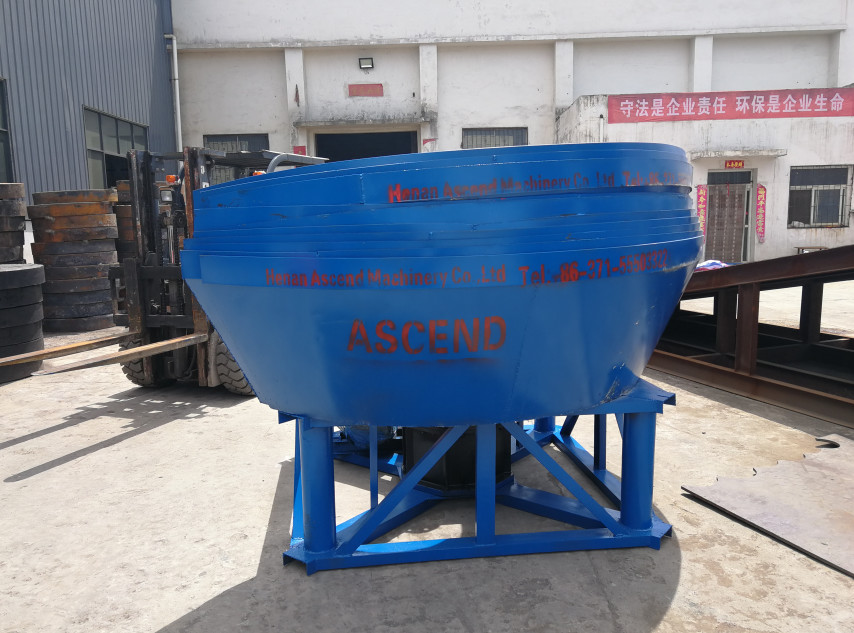

1100 1200 Gold Wet Pan Mill chilean mill grinding machine 0

Sudan Egypt Use 1100 1200 Wet Pan Mill Gold Grinding Machine



Wet pan mill is also called gold grinding round mill, it is a high efficiency gold grinding machine, mainly used in the small and medium size gold concentrate factory.



It is widely applied to the grinding and benefication of all kinds of metal minerals, non-metal minerals, rare metal and other materials. Such as gold, silver, lead, zinc, molybdenum, iron, copper, antimony, tungsten, tin and so on.



1100 1200 Gold Wet Pan Mill chilean mill grinding machine 1



Main operation tips

1.The normal operation of the mill, before they start feeding.
2, this machine prohibit strip start, the outage at boot time, you must first clean up the residual ore in the middle of the milled slot and then start.
3, should be uniform feeding not erratic, it is best to use the feeder.
4, bearing frequent butter, gear box or car rear axle with frequent checks whether the loss of gear oil.
5, regular checks of the various parts of the screw is loose.
6.Found bearing damage must be promptly replaced, shaft eccentric avoid damage to other parts
7 mill runtime to pay attention to that the reducer or bearing part of the presence or absence of abnormal sound, whether the temperature is too high, the motor current is too large irregularities; should be shut down immediately if the

1100 1200 Gold Wet Pan Mill chilean mill grinding machine 2

Specifications

Model Specification Input size
(mm)		 Capacity
(t/h)		 Powder
(kw)		 Weight
(t)
1600 1600×350×200×460±20mm   1-2 30 13.5
1500 1500×300×150×420±20mm   0.8-1.5 22 11.3
1400 1400×260×150×350±20mm <25mm 0.5-0.8 18.5 8.5
1200 1200×180×120×250±20mm   0.25-0.5 7.5 5.5
1100 1100×160×120×250±20mm   0.15-0.25 5.5 4.5
1000 1000×180×120×250±20mm   0.15-0.2 5.5 4.3



Wet pan mill spare parts

1100 1200 Gold Wet Pan Mill chilean mill grinding machine 3

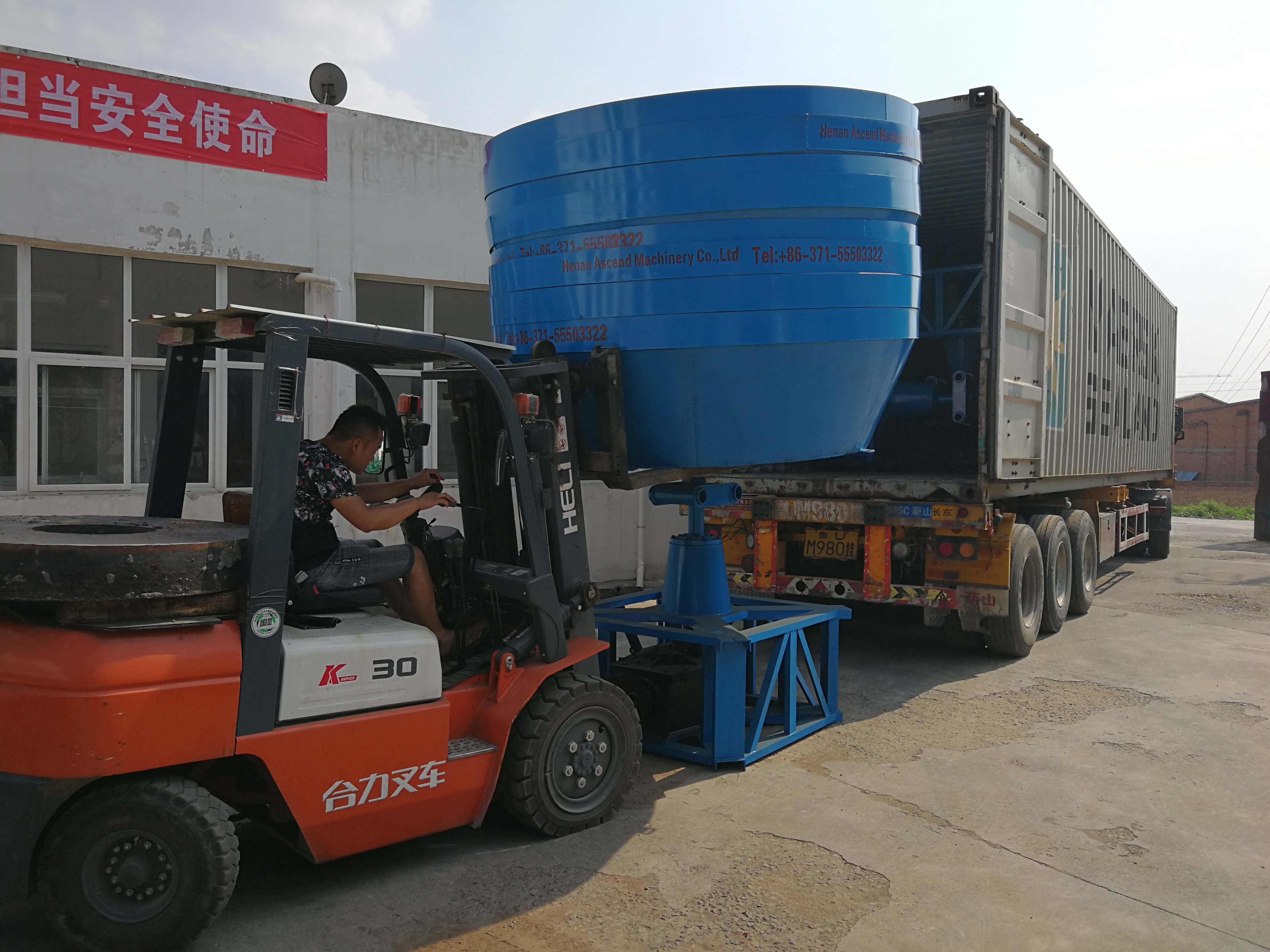

Package and delivery

1100 1200 Gold Wet Pan Mill chilean mill grinding machine 4
