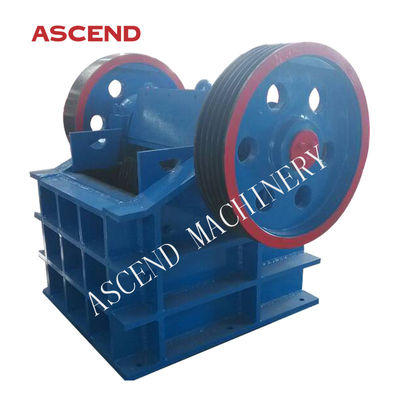

Rock stone gold ore Jaw Stone Crusher Machine

  • Rock stone gold ore Jaw Stone Crusher Machine
  • Rock stone gold ore Jaw Stone Crusher Machine
  • Rock stone gold ore Jaw Stone Crusher Machine
Place of Origin Zhengzhou, China
Brand Name Ascend
Certification ISO9001, CE
Model Number PE500x750 PE600x900 PE750x1060
Document Product Brochure PDF
Minimum Order Quantity 1 set
Price USD 3000-18000
Packaging Details jaw crusher Free installation and technical training. 1. small parts are wooden box package. 2. main engine nude packing, container, or upon customers requirement.
Delivery Time 10-20 working days
Payment Terms T/T, Western Union, MoneyGram, L/C
Supply Ability 20 Sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Jaw Crusher Color Optional
Material High Manganese Mn13Cr2 Function Crushing, Mining, Construction, Etc.
Highlight

Rock Jaw Stone Crusher Machine

,

Rock diesel jaw crusher
Leave a Message
Product Description



       High efficiency Stone and Rock jaw crusher

The Jaw Crusher is widely used in mining, building materials, chemical industry, metallurgy and so on. The Jaw Crusher is suitable for primary and secondary crushing all kinds of minerals and rocks with compressive strength less than 320 MPa.





        Rock stone gold ore Jaw Stone Crusher Machine 0

Working principle



The motor transmits through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when mobile jaw moving. So the mobile jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.



       Rock stone gold ore Jaw Stone Crusher Machine 1





Ascend Jaw Crusher in working sites



         Rock stone gold ore Jaw Stone Crusher Machine 2





        Rock stone gold ore Jaw Stone Crusher Machine 3



Jaw crusher specifications

Model Feeding mouth size
(mm)		 Max Feeding size
(mm)		 Adjusting range
of output size
(mm)		 Capacity
(t/h)		 rotation speed
(r/min)		 Power
(kw)		 Weight
(t)		 Dimension
(L×W×H)
(mm)
PE-150×250 150×250 125 10-40 1-3 260 5.5 0.7 1000×870×990
PE-200×300 200×300 180 15-50 2-6 260 7.5 1 1050×920×990
PE-220×350 220×350 200 18-55 4-10 260 11 1.3 1100×970×990
PE-250×400 250×400 210 20-60 5-20 300 15 2.8 1300×1090×1270
PE-400×600 400×600 340 40-100 16-60 275 30 7 1730×1730×1630
PE-500×750 500×750 425 50-100 40-110 275 55 12 1980×2080×1870
PE-600×900 600×900 500 65-160 50-180 250 55 17 2190×2206×2300
PE-750×1060 750×1060 630 80-140 110-320 250 110 31 2660×2430×2800
PE-900×1060 900×1060 685 230-290 230-390 250 110 33 2870×2420×2940
PE-900×1200 900×1200 750 95-165 220-450 200 110 52 3380×2870×3330
PE-
PEX-150×750 150×750 120 18-48 8-25 320 15 3.8 1200×1530×1060
PEX-250×750 250×750 210 25-60 13-35 330 30 5.5 1380×1750×1540
PEX-250×1000 250×1000 210 25-60 16-52 330 30 7 1560×1950×1390
PEX-250×1200 250×1200 210 25-60 20-61 330 37 9.7 2140×1660×1500
PEX-300×1300 300×1300 250 20-90 16-105 300 55 15.6 2720×1950×1600
