Gravel Rock Granite Spring Symons Roller Cone Crusher

  • Gravel Rock Granite Spring Symons Roller Cone Crusher
  • Gravel Rock Granite Spring Symons Roller Cone Crusher
  • Gravel Rock Granite Spring Symons Roller Cone Crusher
  • Gravel Rock Granite Spring Symons Roller Cone Crusher
Place of Origin China
Brand Name Ascend
Certification CE
Model Number PYB900 PYB1200 PYB1400
Document Product Brochure PDF
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details water and rust proof in container
Delivery Time 7-10 working days
Payment Terms T/T, Western Union
Supply Ability 10 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Mining,construction,Quarry,ore Condition New
Warranty One Year,one Year Excluding Wearing Parts After-sales Service Provided Engineers Available To Service Machinery Overseas
Dimension(l*w*h) 2726X1950X2182 Motor Type AC Motor
Capacity(t/h) 30-90(t/h) Weight 10.3t
Type Roller Crusher,Cone Crusher
Highlight

Rock Granite Roller Cone Crusher

,

Gravel Roller Crusher machine

,

Spring Symons Roller Cone Crusher
Leave a Message
Product Description

Granite river stone hard rock cone crusher crushing plant

The cone crusher is a secondary or tertiary crushing equipment used for the crushing of raw materials in metallurgy, architecture, road construction, chemistry, and silicate industry. Cone crusher is mainly used to crush the mid-hard or hard ore and rock. It can be divided into several type, Spring cone crusher, Symons cone crusher, compound cone crusher and hydraulic cone crusher.

Gravel Rock Granite Spring Symons Roller Cone Crusher 0

Working principle

Cone crusher consists of frame, transmission device, hollow eccentric shaft, bowl-shaped bearing, crushing cone, springs and hydraulic pressure station for adjusting discharge opening. During operation, the motor drives the eccentric shaft shell to turn around through ahorizontal axle and a pair of bevel gear. The axle of crushing cone swings with the force of eccentric shaft shell so that the surface of the crushing wall is close to the roll mortar wall from time to time. In this way, the ores and rocks will be pressed and crooked and crushed.

Gravel Rock Granite Spring Symons Roller Cone Crusher 1

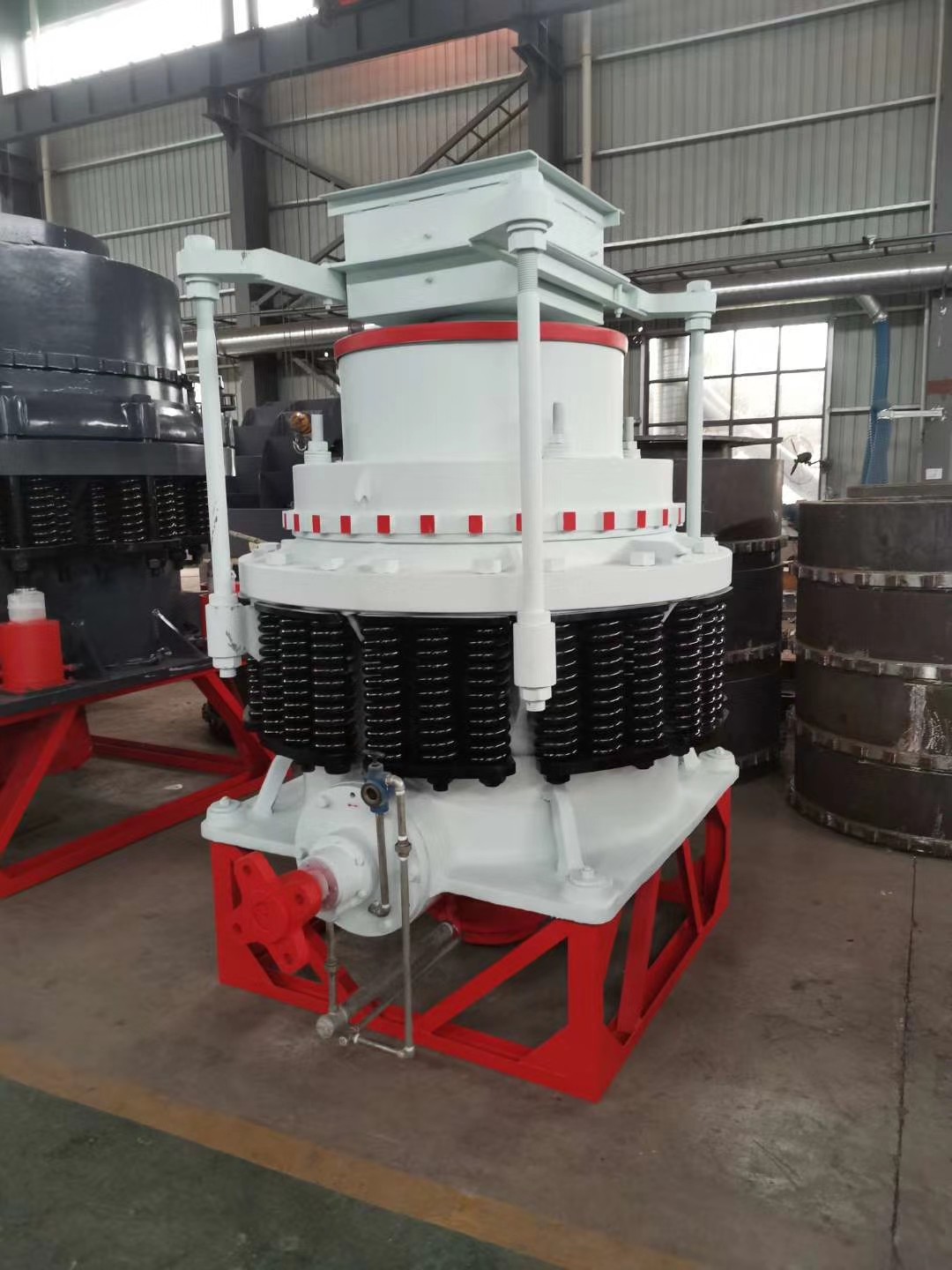

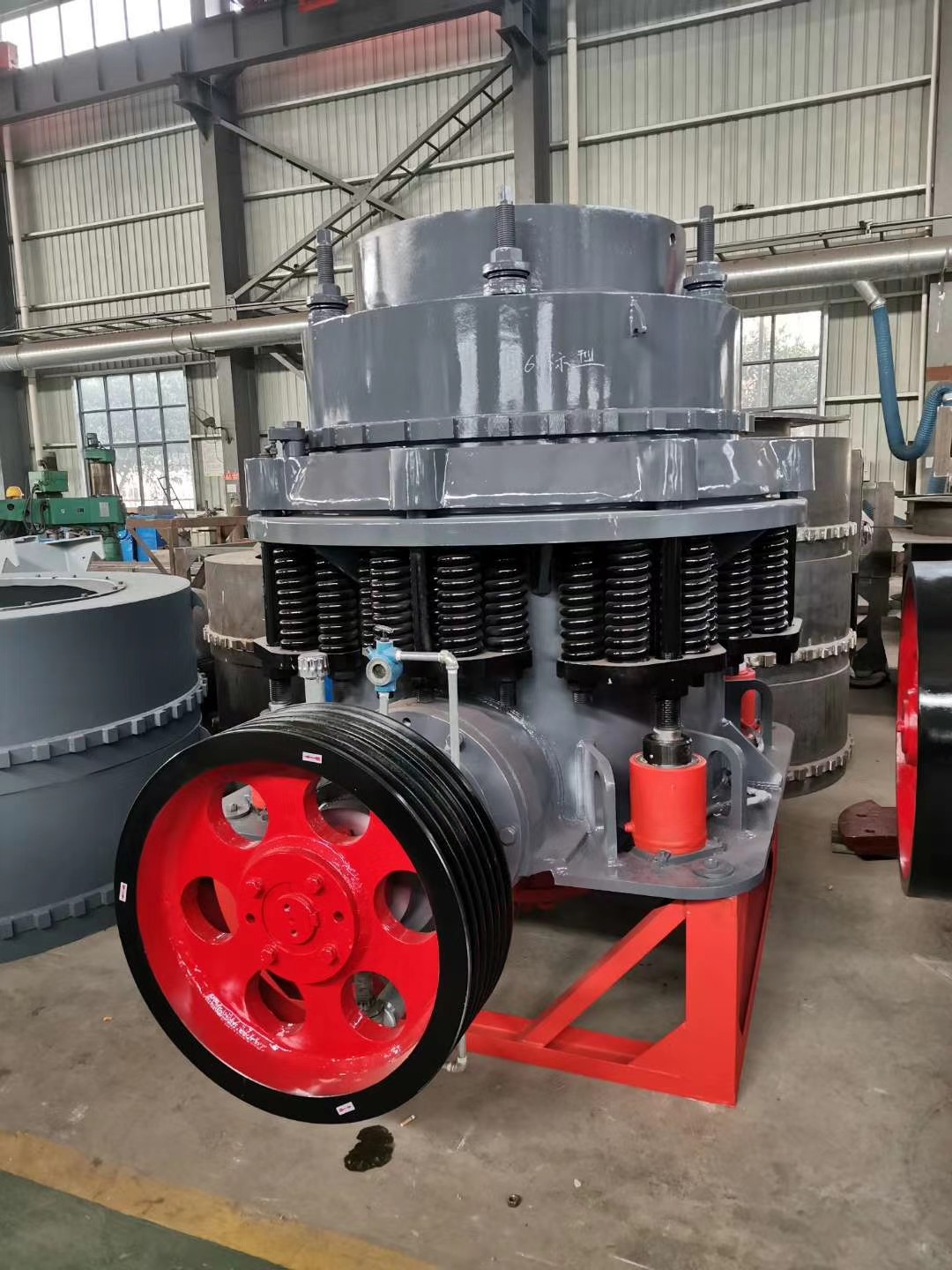

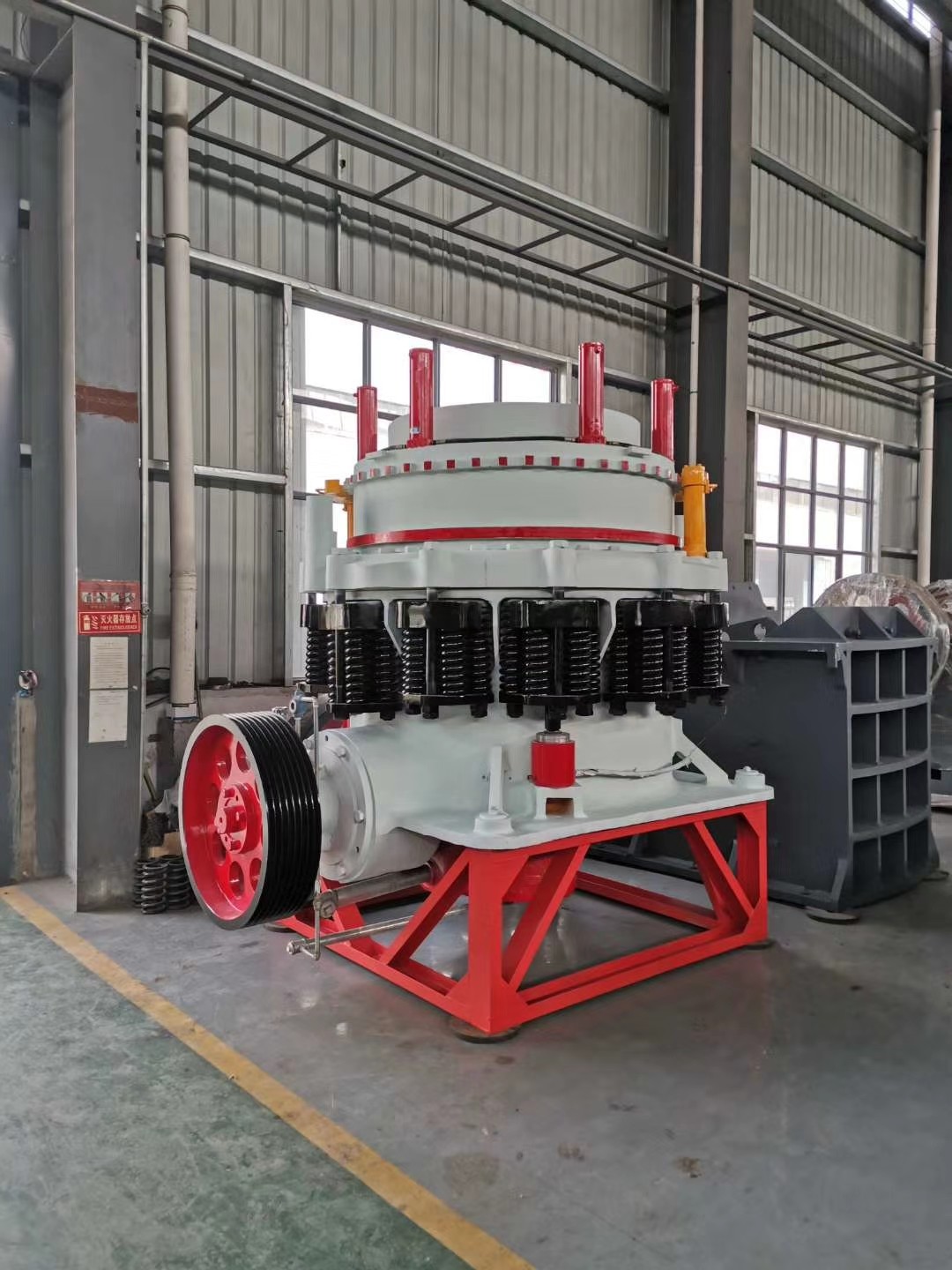

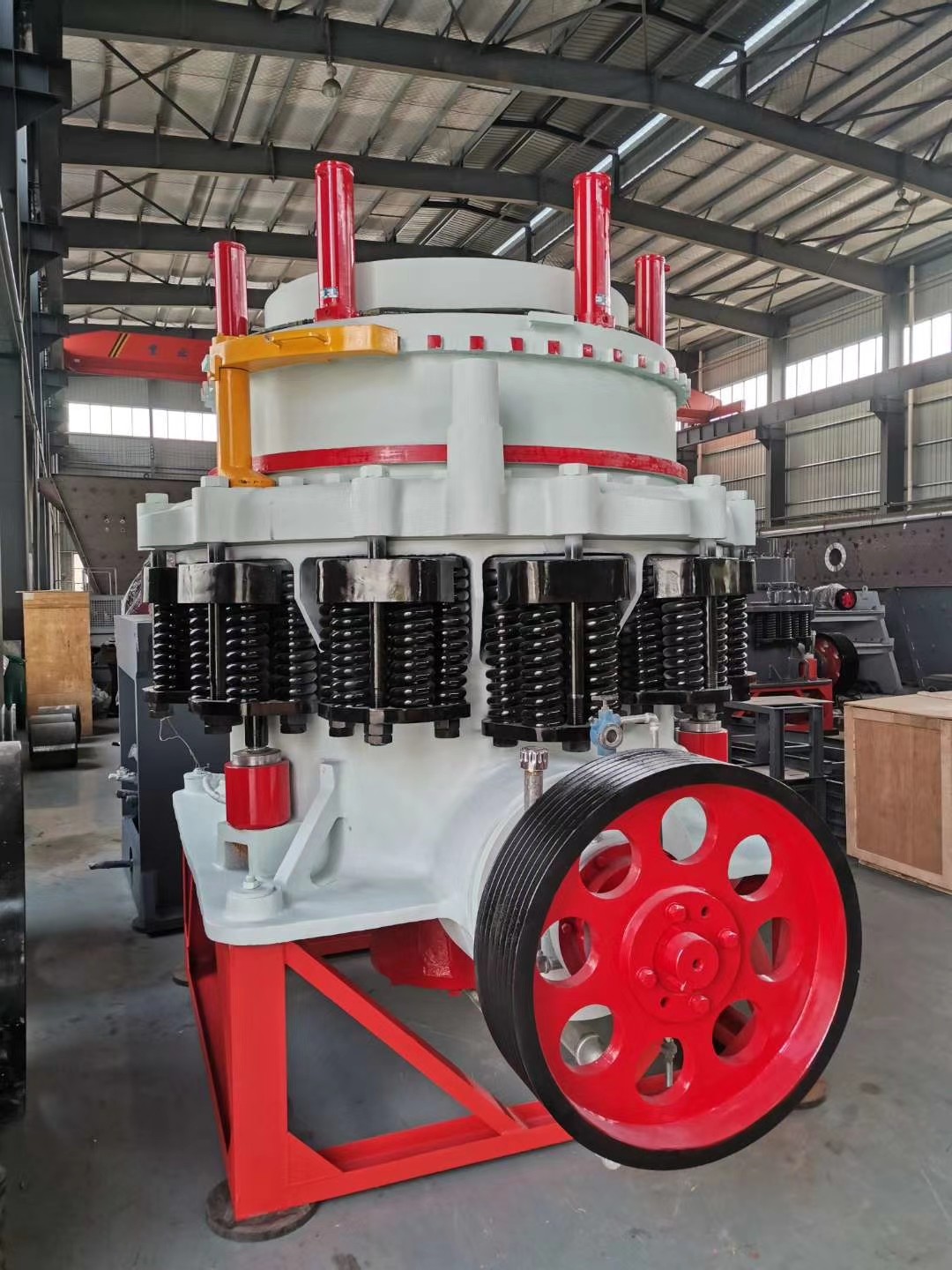

Product pictures

1. The cone crusher has features of tight structure, efficient product, adopts bowl type shaft with high precision reserve, and focus lubrication systom,easy adjustment and the spring can product the all the equipment.
2. The cone crusher can avoid the moisture mixed with the oil, and the spring can make up for the airproof, when the airproof wear out about 1/4-1/3,must to exchange the airproof in time.
3. Easy and low cost maintenance, it is the best choice of middle and fine crushing process.

Gravel Rock Granite Spring Symons Roller Cone Crusher 2Gravel Rock Granite Spring Symons Roller Cone Crusher 3

Cone crusher Spare parts

Gravel Rock Granite Spring Symons Roller Cone Crusher 4

Product specifications

Type Diameter of
cylinder
(mm)		 Feeding size
(mm)		 Adjustment range of output size
(mm)		 Capacity
(t/h)		 Rotation speed
(r/min)		 Power
(kw)		 Overall size
(mm)		 Weight
(t)
PYB600 600 65 12-25 15-25 356 30 1740*1225*1940 5.5
PYZ600 600 45 5-18 8-23 356 30 1740*1225*1940 5.5
PYD600 600 36 3-13 5-20 356 30 1740*1225*1940 5.5
PYB900 900 115 15-50 50-90 333 55 2692*1640*2350 11.2
PYZ900 900 60 5-20 20-65 333 55 2692*1640*2350 11.2
PYD900 900 50 3-13 15-50 333 55 2692*1640*2350 11.3
PYB1200 1200 145 20-50 110-168 300 110 2790*1878*2844 24.7
PYZ1200 1200 100 8-25 42-135 300 110 2790*1878*2844 25
PYD1200 1200 50 3-15 18-105 300 110 2790*1878*2844 25.3
PYB1750 1750 215 25-50 280-480 245 160 3910*2894*3809 50.3
PYZ1750 1750 185 10-30 115-320 245 160 3910*2894*3809 50.3
PYD1750 1750 85 5-13 75-230 245 160 3910*2894*3809 50.2
PYB2200 2200 300 30-60 59-1000 220 260-280 4622*3302*4470 80
PYZ2200 2200 230 10-30 200-580 220 260-280 4622*3302*4470 80
PYD2200 2200 100 5-15 120-340 220 260-280 4622*3302*4470 81.4



Customer working site

Gravel Rock Granite Spring Symons Roller Cone Crusher 5
