PFL-800 Vertical Shaft Hammer Crusher For Machine Stone Crushing Plant
| Place of Origin | China |
|---|---|
| Brand Name | ASCEND |
| Certification | CE/ISSO9001 |
| Model Number | PFL-800 |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 set |
| Price | USD 3500-35000 Per set |
| Packaging Details | Water and rust proof in wooden box or cotainer |
| Delivery Time | 7-10 working days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 10 set per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Keyword | Fine Stone Crusher | Name | Compound Crusher |
|---|---|---|---|
| Motor Type | AC Motor | Dimension(L*W*H) | 2100x1200x1700 |
| Warranty | 1 Year | The Machines Classification | Stone Crushing Machine |
Product Description
Product Description
Product Description
The compound crusher is a kind of fine crushing equipment with large crushing ratio. It has no screening grate in the crushing cavity.The particle size of the material can be adjusted arbitrarily, and is not affected by the wear of the plate hammer and the lining plate. Without the screen grate, it is not easy to block when the material has high moisture and mud rate; the elastic adjustment mechanism can be used to automatically discharge the unbreakable material. It will not cause equipment damage; the bearing is horizontally arranged and has a long service life, which can crush materials with high temperature (such as cement clinker).
Working Principle
Working Principle
Materials fall into the high-speed rotation impeller from the above of machine, under the action of high-speed centrifugal force, have high-speed impact with another umbrella form materials which flow around the impeller, after they attack each other, then discharged from the bottom, it forms close-circuit and with many times circulation, it can achieve the required product size by screening equipment controlling.

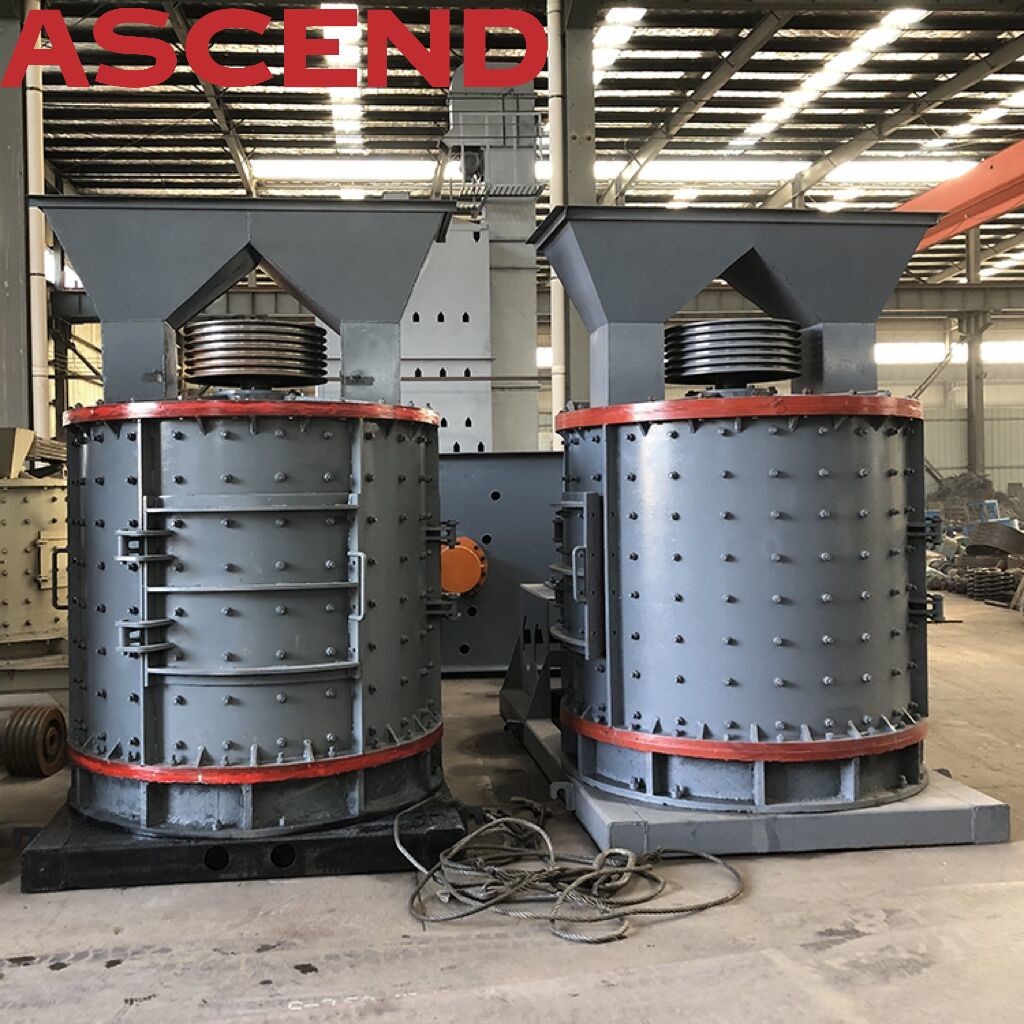

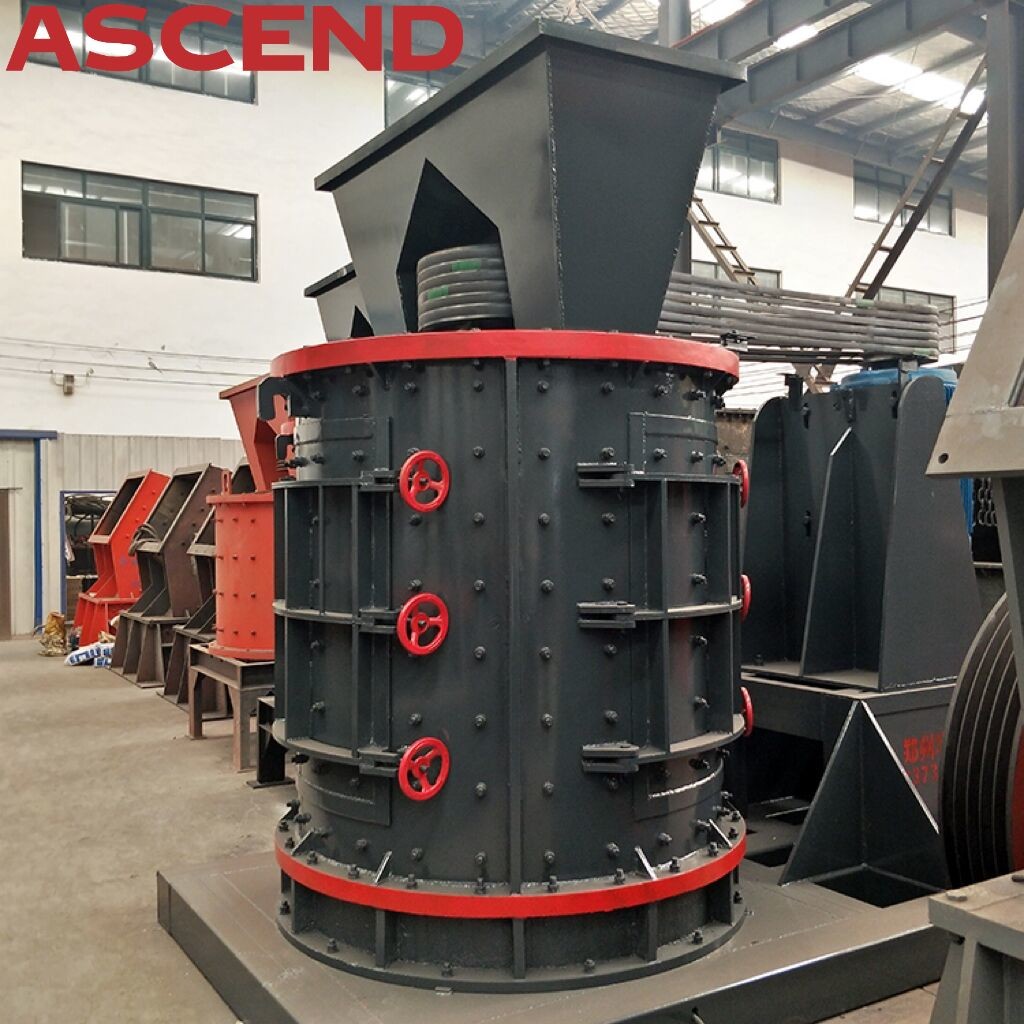

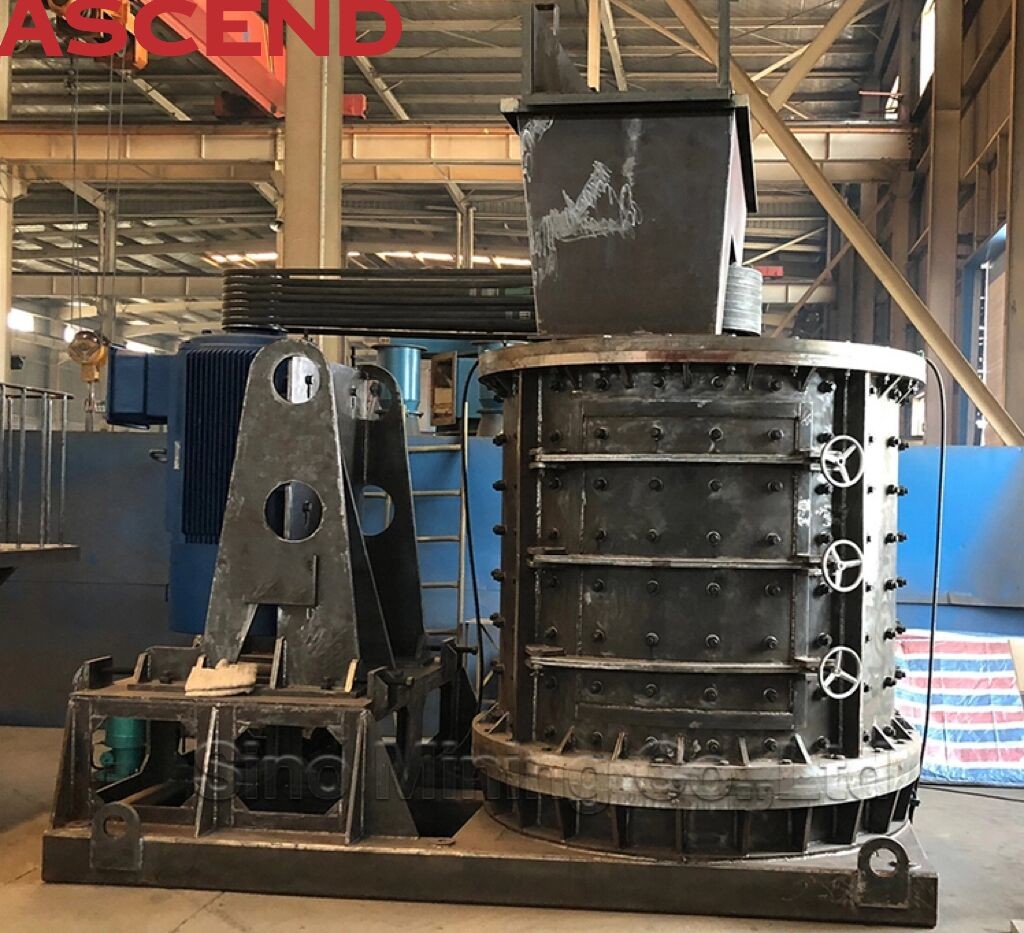

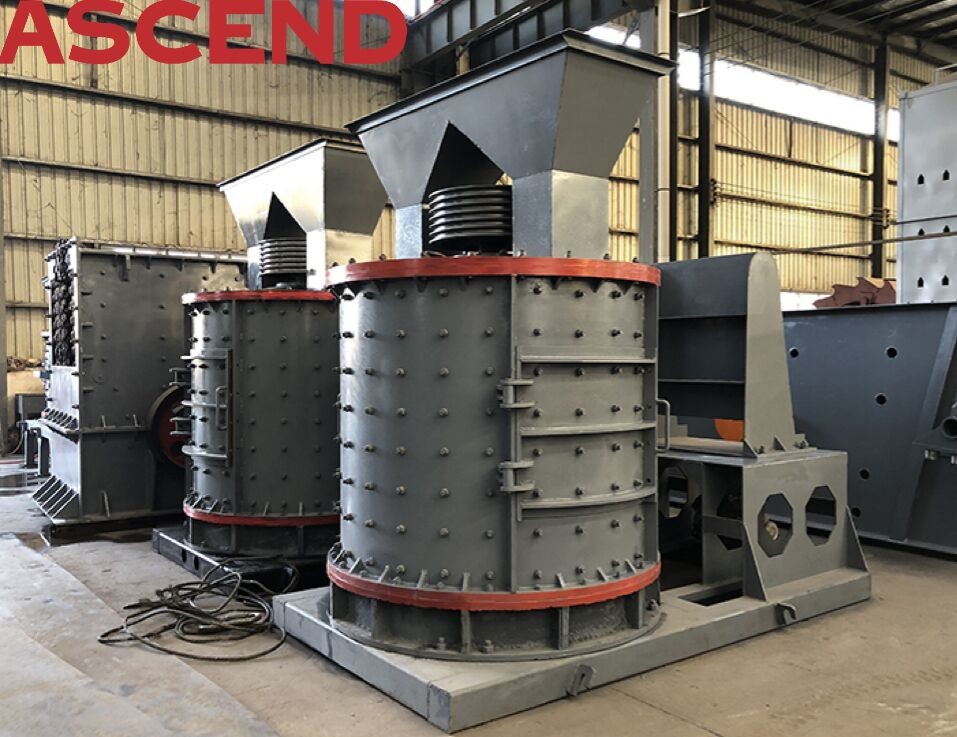

Product pictures
Product Advantages
1.Simple structure low operation cost. using the principle of stone strike stone , smaller wear.
2.High crushing ratio, low energy consumption.
3.It can crush material with high moisture content, humidity can reach 8%.
5.Working noise is less than 75 db, less dust pollution.
6.Suitable for breaking medium hard, especially like clay, limestone and gypsum
Specifications
techinical parameters
| Model | PFL-800 | PFL-1000 | PFL-1250 | PFL-1500 | PFL-1750 |
| Feed Grain(mm) | 100 | 120 | 150 | 180 | 200 |
| Material-in Size (mm) | 0-5 | 0-5 | 0-5 | 0-5 | 0-5 |
| Trening Capacity(t/h) | 10-20 | 20-40 | 40-70 | 70-100 | 130-190 |
| Motor Power (kw) | 22 | 45-55 | 75 | 90-110 | 132-160 |
| Maine Shaft Speed(r/min) | 934 | 769 | 530 | 495 | 424 |
| Overall Dimension(mm) | 2100*1200*1700 | 2600*1400*1900 | 2800*1600*2100 | 3100*1900*2200 | 3710*2360*2390 |
| Weight(t) | 2.3 | 4.5 | 6.2 | 8.3 | 12 |
Working site
Company information
- Ascendmachinery expands its business in more than 160 countries and regions
- Henan Ascend Machinery & Equipment Co., Ltd. was established in 2005 and it is located in the high-tech zone of Zhengzhou City, Henan Province. As a technology driven mining equipment company, it is committed to the R&D, production, sales and after-sales service of mining machinery and equipment.
- The company's main products are crushers, grinding mill equipment, mineral beneficiation equipment, rotary dryer and crusher & grinding mill spare parts. In addition to the Chinese domestic market.
