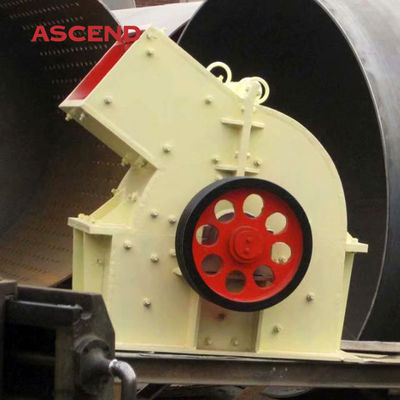

Diesel Engine Hammer Mill Crusher Barite Quartz Coal 10 - 25tph PC600x400
| Place of Origin | Zhengzhou, China |
|---|---|
| Brand Name | ASCEND |
| Certification | ISO9001, CE |
| Model Number | PC600x400 PC800x600 PC1000x800 |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 set |
| Price | negotiable |
| Packaging Details | 1. Standard parts packed in the wooden cases. 2. Big parts packed by plastic membrane. 3. The whole machine is loaded in the container. |
| Delivery Time | 7-10 working days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 100 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Hammer Mill Crusher | Application | Mining, Quarry |
|---|---|---|---|
| Capacity(t/h) | 10-25tph | Motor Type | Electric Motor |
| Output Size | <10mm | Input Size | <100mm, <250mm |
| Keyword | Hammer Grinding Mill | Installation | Engineer Guide |
| Spare Parts Supply | Lifelong Time | After-sales Service Provided | Field Maintenance And Repair Service |
| Highlight | Diesel Engine Hammer Mill Crusher,25tph Hammer Mill Crusher,PC600x400 Hammer Mill Quartz Coal Crusher |
||
Product Description
Barite Quartz Coal 10-25tph Capacity PC600x400 Diesel Engine Hammer Mill Crusher
Product Description
Hammer crusher crushing ratio is large, easy to operate, adapt to many types of materials, crushing power, has a large proportion in the field of crushing equipment. It is used to crush all kinds of hard and abrasive materials. Its compressive strength does not exceed 100 MPa.
Mobile Hammer Crusher
Detailed Images
Spare Parts
Working Principle
Hammer crusher is mainly used to crush material by impact. The material enters the crusher and is broken by the impact of a high-speed rotary hammer. The broken material obtains kinetic energy from the hammerhead, and thus rushes towards the baffles and screen bars at high speeds. At the same time, the materials collided with each other and were broken several times. Material smaller than the gap between the screen strips was discharged from the gap. The individual larger materials were again broken by the impact, grinding, and squeezing of the hammer on the screen strip. It is extruded from the gap by a hammer to obtain the desired particle size product.
Specifications
| Model |
Max. feeding size (mm) |
Output size (mm) |
Capacity (t/h) |
Motor Power (kw) |
Weight (kg) |
| PC300×200 | ≤100 | ≤10 | 2-5 | 5.5 | 600 |
| PC400×300 | ≤100 | ≤10 | 5-10 | 11 | 800 |
| PC600×400 | ≤120 | ≤15 | 10-25 | 18.5 | 1500 |
| PC800×600 | ≤120 | ≤15 | 20-35 | 55 | 3100 |
| PC1000×800 | ≤200 | ≤15 | 20-40 | 115 | 7900 |
| PC1000×1000 | ≤200 | ≤15 | 30-80 | 132 | 8650 |
| PC1300×1200 | ≤250 | ≤19 | 80-200 | 240 | 13600 |
Working Sites
Packing&Shipping
Company Profile
- Henan Ascend Machinery & Equipment Co., Ltd. was established in 2005 and it is located in the high-tech zone of Zhengzhou City, Henan Province. As a technology driven mining equipment company, it is committed to the R&D, production, sales and after-sales service of mining machinery and equipment.
- The company's main products are crushers, grinding mill equipment, mineral beneficiation equipment, rotary dryer and crusher & grinding mill spare parts. In addition to the Chinese domestic market, Ascend machinery expands its business in more than 160 countries and regions.
Our Workshop
FAQ
Q1. Are you factory or trading company?
We are factory specialized in manufacturing stone crushers, grinding mills, beneficiation equipments and other mining equipments. Our office and factories are based in Zhengzhou, China. Because we are factory, so we can guarantee the machine quality and we can give you very competitive factory price without extra agent cost.
Q2. To which country your products have been exported before?
In Africa, We have exported to Sudan, Kenya, Zambia, Ethiopia, Zimbabwe, Guinea, Nigeria and so on. We also exported South Africa, Chile, Peru, Ecuador, New Zealand, America, Austrilia more than 160 countries. Our equipment and service have won very high reputation in these countries.
Q3. How will you help the customer install the equipment?
We will send our senior engineer to your place to guide the installation and commissioning.
Q4. How about the wear parts supply?
We offer wear parts to our customer with our most favorable price. If there are problems you could not handle, we will send our technicians to your place.
Q5.What about the payment method?
T/T, Paypal, Western Union, L/C is available.
Q6.What about after-sale service?
12 months warranty for all kinds of products; and you will get our 7*24h online service.
