Product Details
Product Name Wet Pan Mill Application Gold Silver Ore
Advantages Easy To Operate Color According To Customer's Requirement
Highlight

three rollers Wet Pan Mill

,

200 meshes Wet Pan Mill
Leave a Message
Product Description



Three Rollers Wet Pan Mill Gold Silver Ore Grinding Machine With 10 Bags Per Hour Discharging Size Less Than 200 Meshes 0




                        1100 1200 model three rollers water wet pan mill for gold ore grinding

Wet pan mill, also called chilean mill, gold round mill, water pan mill, wheel grinding machine and gold grinding machine. It is an ideal equipment for gold ore grinding in African and South American countries, which also can grinding silver, iron, copper, zinc and other precious metal ores. Wet pan mill because of its low investment, high capacity, easy to operate, convenient maintenance and other advantages, has became the first choice to replace ball mill. Wet pan mill according to the number of rollers can be divided into two roller wet pan mill and three roller wet pan mill. We mainly introduce the three roller water pan mill here. China Ascend three rollers wet pan mill has a larger capacity and better grinding effect than the double roller wet pan mill. Ascend triple rollers wet pan mils are well received in African countries.

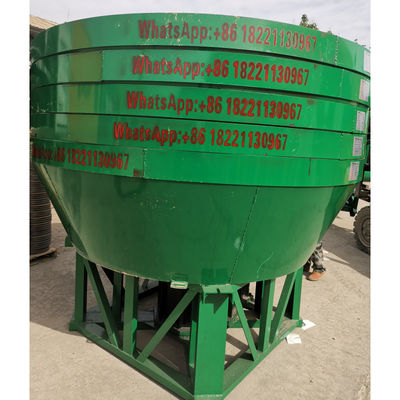

Product pictures
Three Rollers Wet Pan Mill Gold Silver Ore Grinding Machine With 10 Bags Per Hour Discharging Size Less Than 200 Meshes 1

Three Rollers Wet Pan Mill Gold Silver Ore Grinding Machine With 10 Bags Per Hour Discharging Size Less Than 200 Meshes 2

Three Rollers Wet Pan Mill Gold Silver Ore Grinding Machine With 10 Bags Per Hour Discharging Size Less Than 200 Meshes 3

Working principle

The motor drives the speed reducer through the V-belt, and then the speed reducer drives the rollers, so that the rollers rotate in the clockwise direction. We add raw materials and liquid in a certain proportion into the basin. The materials and liquid in the basin are evenly mixed as the rollers rotate. At the same time, the materials are repeatedly stirred, crushed and ground with the friction between the roller and the grinding base. After being ground to a certain fineness, they are discharged with water to achieve the purpose of mineral processing.

Three Rollers Wet Pan Mill Gold Silver Ore Grinding Machine With 10 Bags Per Hour Discharging Size Less Than 200 Meshes 4



Advantages

High efficiency and high capacity: The castings are made of high quality casting steel lining, which greatly increases the service life and the capacity by 30%-60%.

Low invest: Wet pan mill can achieve the same grinding effect as a ball mill, but the cost is much lower than that of a ball mill. It is the fastest way for small and medium-sized miners to obtain pure gold without large investments.

Low maintenance cost: The grinding rollers and grinding rings are made of high quality casting steel alloy, ensuring a service life of at least 3 years, reducing maintenance and spare parts replacement costs for customers.

Energy saving and high resource utilization : The surface of the roller and ring is smooth without any holes or cracks to avoid the loss of mercury or gold, so that the wet pan mill can make full use of effective resources.

Low pollution: We can provide sealing covers for wet pan mills to reduce air pollution.

Specification

Model Type
(mm)

Max feed
size (mm)

Capacity(t/h)

 Power(kw) Weight(ton)
1600 1600x350x200x460 ＜25 1-2 Y6L-30 13.5
1500 1500x300x150x420 ＜25 0.8-1.5 Y6L-22 11.3
1400 1400x260x150x350 ＜25 0.5-0.8 Y6L-18.5 8.5
1200 1200x180x120x250 ＜25 0.25-0.5 Y6L-7.5 5.5
1100 1100x160x120x250 ＜25 0.15-0.25 Y6L-5.5 4.5
1000 1000x180x120x250 ＜25 0.15-0.2 Y6L-5.5 4.3



Wet pan mill operating rules

1. The operator must be trained by the manufacturer and fully understand the structure and performance of the machine before they can operate. The operator must comply with the relevant safety and shift transfer system.

2. Before work, strictly follow the lubricating oil regulations to refuel, and keep the oil amount appropriate, the oil circuit smooth, and the oil injection port clean.

3. Check whether the circuit, electrical parts, line connectors, switches are solid and complete. If there is damage, it must be repaired and replaced.

4. Check whether the parts of the machine are intact, whether the roller rotates flexibly, the tightness of the transmission belt, and whether the transmission parts are securely connected; After the inspection is completed, the boot idling for 3-5 minutes, confirm that the parts are normal, before adding the ore, and must be added in strict accordance with the prescribed amount of ore, it is strictly prohibited to overload work.

5. When feeding the ore, the material must be sifted to prevent hard metal debris such as iron blocks from being put into the mill and damaging the machine.

6. When stopping for some reason, the material in the roller should be removed first, and then started. It is strictly prohibited to forcibly start with heavy load.

7. When the machine is in operation, the operator shall not leave, and should often inspect the working conditions of various parts. In case of abnormal sound of the equipment, large vibration of the roller, excessive temperature of the reducer oil, overheating of the motor housing, and slip of the transmission belt, the machine should be shut down immediately.

8. During the shutdown process, when the roller is not completely stopped, it is not allowed to extend the arm and other instruments into the roller basin to prevent injury and damage to the machine.

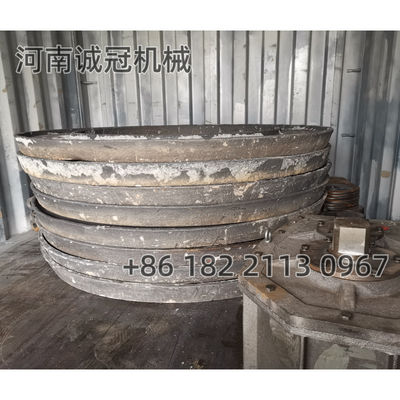

Spare Parts

Three Rollers Wet Pan Mill Gold Silver Ore Grinding Machine With 10 Bags Per Hour Discharging Size Less Than 200 Meshes 5

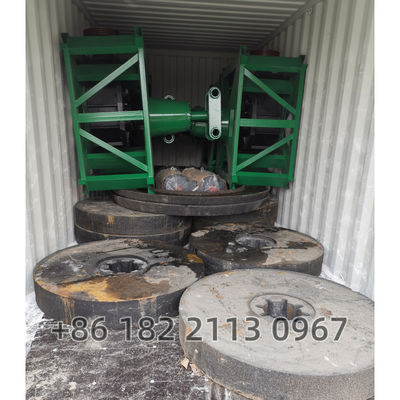

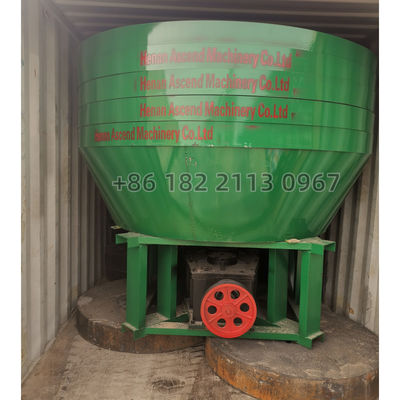

Product delivery
Three Rollers Wet Pan Mill Gold Silver Ore Grinding Machine With 10 Bags Per Hour Discharging Size Less Than 200 Meshes 6

Three Rollers Wet Pan Mill Gold Silver Ore Grinding Machine With 10 Bags Per Hour Discharging Size Less Than 200 Meshes 7



Working site
Three Rollers Wet Pan Mill Gold Silver Ore Grinding Machine With 10 Bags Per Hour Discharging Size Less Than 200 Meshes 8
Three Rollers Wet Pan Mill Gold Silver Ore Grinding Machine With 10 Bags Per Hour Discharging Size Less Than 200 Meshes 9

We also supply
Three Rollers Wet Pan Mill Gold Silver Ore Grinding Machine With 10 Bags Per Hour Discharging Size Less Than 200 Meshes 10
Three Rollers Wet Pan Mill Gold Silver Ore Grinding Machine With 10 Bags Per Hour Discharging Size Less Than 200 Meshes 11
Three Rollers Wet Pan Mill Gold Silver Ore Grinding Machine With 10 Bags Per Hour Discharging Size Less Than 200 Meshes 12

Contact us
Three Rollers Wet Pan Mill Gold Silver Ore Grinding Machine With 10 Bags Per Hour Discharging Size Less Than 200 Meshes 13
