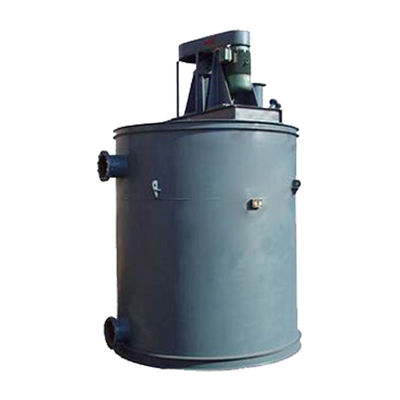

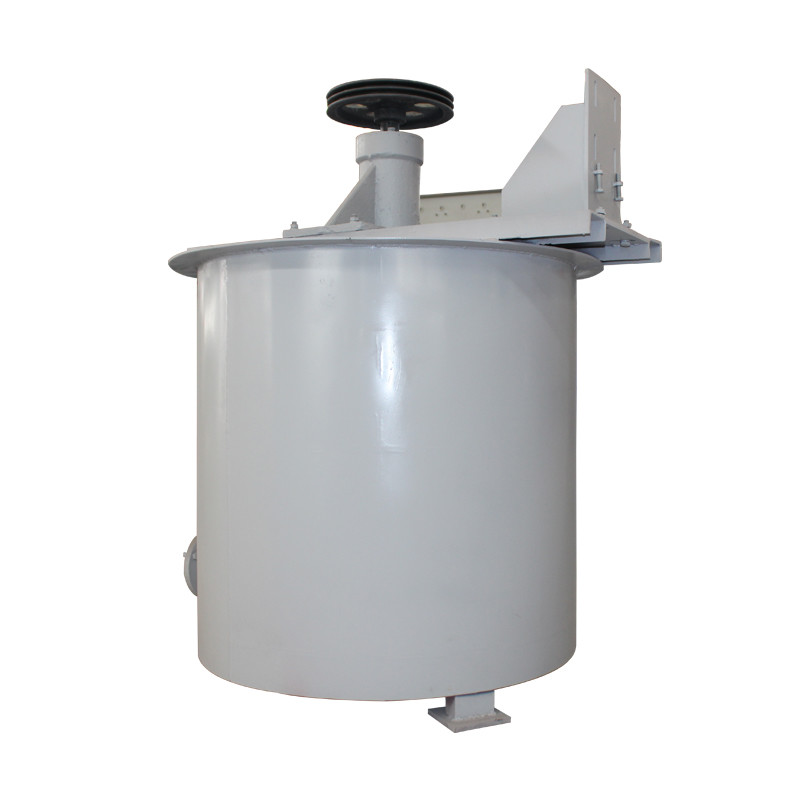

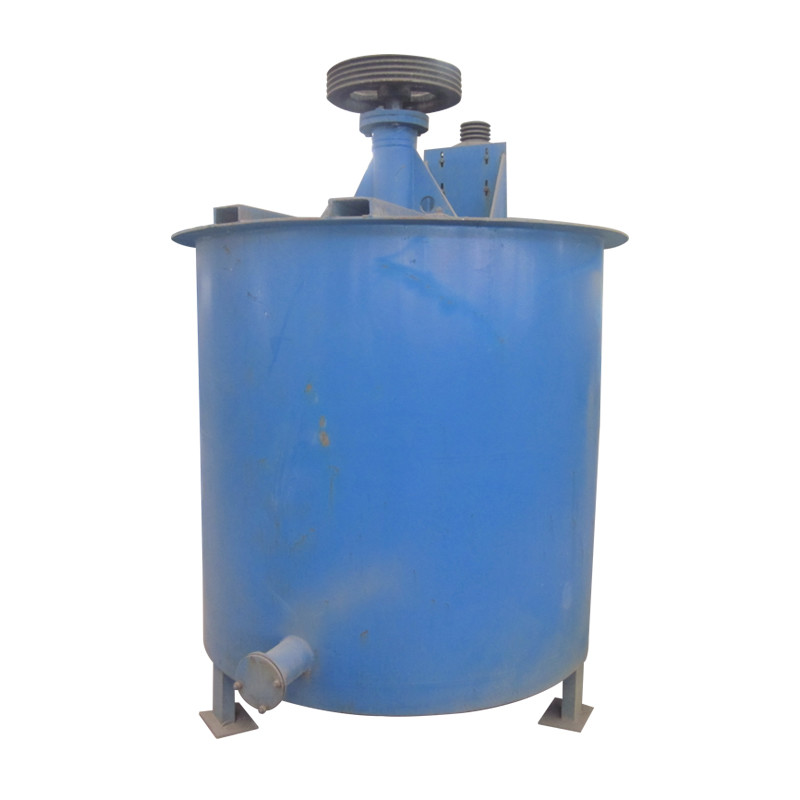

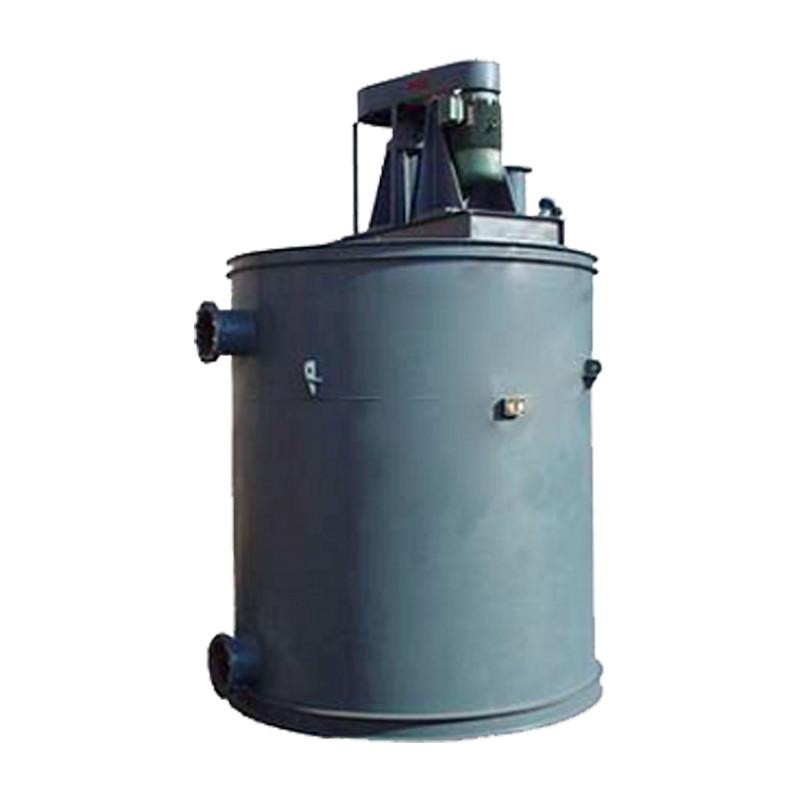

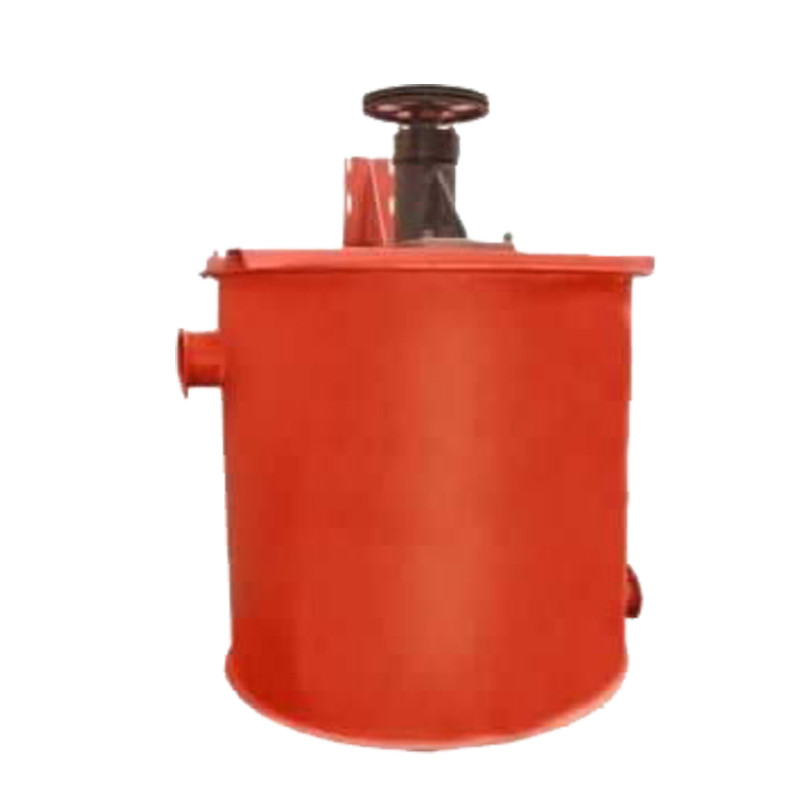

Lead Ore Mixer Tank Auxiliary Mining Machinery

  • Lead Ore Mixer Tank Auxiliary Mining Machinery
  • Lead Ore Mixer Tank Auxiliary Mining Machinery
  • Lead Ore Mixer Tank Auxiliary Mining Machinery
  • Lead Ore Mixer Tank Auxiliary Mining Machinery
Place of Origin China
Brand Name Ascend
Certification CE/ISSO9001
Model Number MX1000 MX1200 MX1500
Document Product Brochure PDF
Minimum Order Quantity 1 set
Price USD 3500-30000 Per set
Packaging Details Water and rust proof in wooden box or cotainer
Delivery Time 7-10 working days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 10 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification CE,ISO9001 Condition New
Dimension(l*w*h) Depend,1215x860x1415mm Capacity Optional,250-300kg (30mesh
Name Mining Mixer Tank Application Mining Ore Grinding And Mixing
Color Customized
Highlight

300kg mining mixer tank

,

250kg gold mining equipment
Leave a Message
Product Description

Gold copper lead mining ore mixer tank agitation mixer machine

Mixing tank is mainly used to blend medicament and ore magma ,it’s suitable for blending various kinds of metal and nonmetal ores. Especially it’s applied to stir the slurry of concentration not more than 30% and solid granularity particle size less than 1mm in floating, gravity concentrating and wet-type magnetic separation. It is also used to mix floatation agents and other non-metal minerals.

Lead Ore Mixer Tank Auxiliary Mining Machinery 0

Working principle

Application range :It is widely used in the mixing of various metal ore and non-metal minerals, and the concentration is not more than 30% (by weight) of pulp with a particle size of less than 1 mm. It can also be used in industrial sectors such as slurry mixing and cyanide plants and sewage treatment plants in the chemical and building materials industries.

Lead Ore Mixer Tank Auxiliary Mining Machinery 1

Product advantages

The mixing barrel  has compact structure and good sealing performance, and a gray ash plate is arranged at the feeding port to prevent the water mist from collapsing. Stir well, the mixing blade is fan-shaped, and the contact area with the medium is large when stirring. The nozzles are arranged in multiple rows, and the water volume is uniform and adjustable. Advanced performance, stable quality of finished products, uniform mixing and rapid discharge.

Lead Ore Mixer Tank Auxiliary Mining Machinery 2

Lead Ore Mixer Tank Auxiliary Mining Machinery 3

Specifications

Type Inner Dimensions (mm) volume(m³) Speed(r/min) Power (KW) Overall (mm) Weight (t)
MX-500 500 0.098 600 1.1 600×566×954 0.2
MX-750 750 0.33 530 1.5 1085×858×1202 0.7
MX-1000 1000 0.58 530 1.5 1173×1138×1491 1
MX-1200 1200 1.4 340 3 1354×1310×1742 1.1
MX-1500 1500 2.2 320 3 1656×1572×2171 1.2
MX-2000 2000 5.6 290 5.5 2380×2162×2850 1.6
MX-2500 2500 11.2 280 15 3036×2716×3543 3.4
MX-3000 3000 19.1 210 18.5 3604×3216×4250 4.9
MX-3550 3550 30 230 22 3940×3766×5386 7.3
TSO-750 750 0.44 674 3 1085×958×1492 0.9
TSO-1200 1200 1.4 400 5.5   1.2
TSO-1500 1500 2.2 400-440 11 2060×1620×2330 1.6
