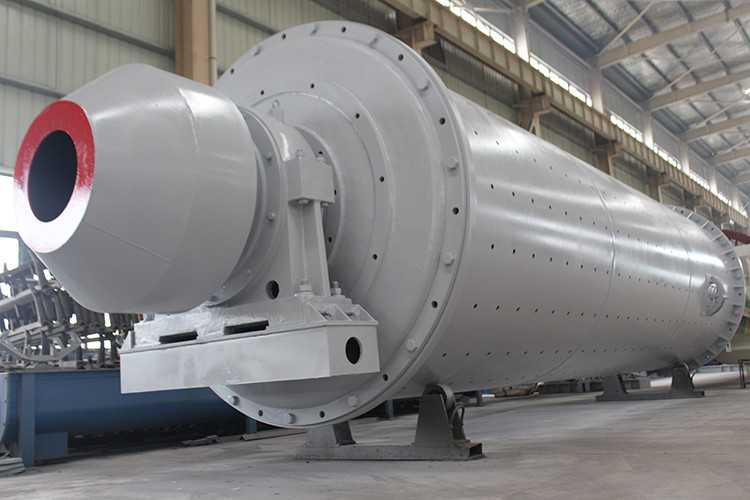

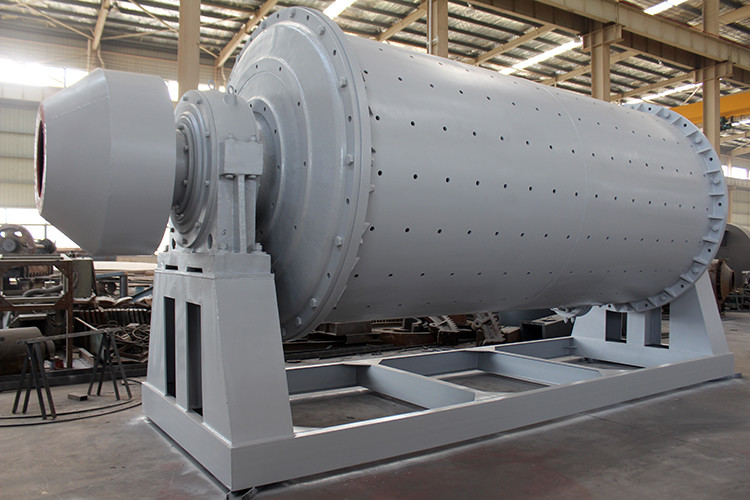

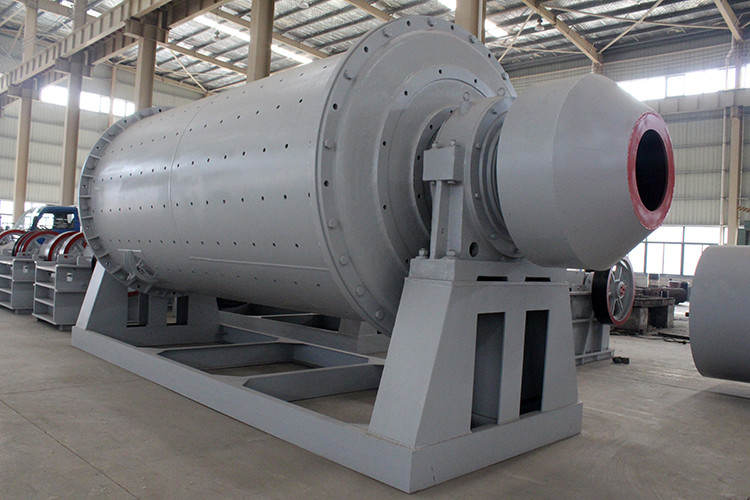

Small Mining Vibrating Ball Mill Crusher

  • Small Mining Vibrating Ball Mill Crusher
  • Small Mining Vibrating Ball Mill Crusher
  • Small Mining Vibrating Ball Mill Crusher
  • Small Mining Vibrating Ball Mill Crusher
  • Small Mining Vibrating Ball Mill Crusher
Place of Origin China
Brand Name Ascend
Certification CE
Model Number 1200x2400, 1200x1500 1500x3000 1830x3000
Document Product Brochure PDF
Minimum Order Quantity 1 set
Price USD 3800-38000 Per set
Packaging Details Water and rust proof in wooden box or cotainer

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Wet And Dry Ball Mill Application Mining Ore Grinding
Type Overflow And Grid Type Voltage 380V 50Hz
Material Mn13Cr2 Color Customized
Standard Client Specification Quality Control Professional Inspection
Highlight

Vibrating dry ball mill

,

Vibrating mineral grinding ball mill

,

Vibrating Ball Mill Crusher
Leave a Message
Product Description

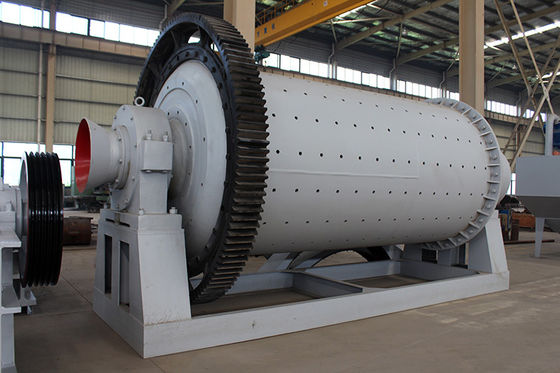

Small Mining Vibrating Ball Mill Crusher 0

Mineral ore grinding ball mill machine

Ball mill is mainly used for mineral processing, chemical, medicine, building materials, quartz powder for plate etc. This product can used to pruduce high purity quartz powder with 200-300mush, the product has many advantages such as high purity, good whiteness and stable granularity and so on. The whole production line can realize automatic control and stable operation.

Small Mining Vibrating Ball Mill Crusher 1

Working priciple

The ball mill is a homitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

Small Mining Vibrating Ball Mill Crusher 2

Product advantages

1. High-efficiency. Our ball mill adopts rolling bearing support instead of sliding bearing support with bearing bush. Therefore, it can save energy by 10-20%.

2. Simple structure, easy maintenance. Ball mill is mainly composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). Convenient installation and debugging , easy to operate.

3. High processing capacity,obvious continuous operation advantages. The capacity can get 4.6-260 t/h.

4. Wide-range usage. Ball mill as an old grinding equipment in market, the technology is mature and operated steadily.

Small Mining Vibrating Ball Mill Crusher 3

Small Mining Vibrating Ball Mill Crusher 4

Ball mill liners and steel balls

Small Mining Vibrating Ball Mill Crusher 5

Small Mining Vibrating Ball Mill Crusher 6

Specifications

Model
Shell rotation speed(r/min)
Ball load
Feeding size
Discharging size
Capacity
Motor power
Weight
(t)
(mm)
(mm)
(t/h)
(kw)
(t)
Ø 900*1800
36-38
1.5
< =20
0.075-0.89
0.65-2
18.5
4.6
Ø 900*3000
36
2.7
< =20
0.075-0.89
1.1-3.5
22
5.6
Ø 1200*2400
36
3
< =25
0.075-0.6
1.5-4.8
30
12
Ø 1200*3000
36
3.5
< =25
0.074-0.4
1.6-5
37
12.8
Ø 1200*4500
32.4
5
< =25
0.074-0.4
1.6-5.8
55
13.8
Ø 1500*3000
29.7
7.5
< =25
0.074-0.4
2.0-5.0
75
15.6
Ø 1500*4500
27
11
< =25
0.074-0.4
3.0-5.0
110
21
Ø 1500*5700
28
12
< =25
0.074-0.4
3.5-6
130
24.7
Ø 1830*3000
25.4
11
< =25
0.074-0.4
4.0-10.0
130
28
Ø 1830*4500
25.4
15
< =25
0.074-0.4
4.5-12
155
32
Ø 1830*6400
24.1
21
< =25
0.074-0.4
6.5-15
210
34
Ø 1830*7000
24.1
23
< =25
0.074-0.4
7.5-17
245
36
Ø 2100*3000
23.7
15
< =25
0.074-0.4
6.5-36
155
34
Ø 2100*4500
23.7
24
< =25
0.074-0.4
8-43
245
42
Ø 2100*7000
23.7
26
< =25
0.074-0.4
8-48
280
50
Ø 2200*4500
21.5
27
< =25
0.074-0.4
9-45
280
48.5
Ø 2200*6500
21.7
35
< =25
0.074-0.4
14-26
380
52.8
Ø 2200*7000
21.7
35
< =25
0.074-0.4
15-28
380
54
Ø 2200*7500
21.7
35
< =25
0.074-0.4
15-30
380
56
Ø 2400*3000
21
23
< =25
0.074-0.4
7-50
245
54



Product delivery

Small Mining Vibrating Ball Mill Crusher 7

Ball mill working site

Small Mining Vibrating Ball Mill Crusher 8

Small Mining Vibrating Ball Mill Crusher 9
