900x1200 900x1800 Ball Mill Stone Grinding Machine With 1 2 3 Tph Capacity For Gold Silver Zinc Copper Stone Grinding

China Ascend ball mill crusher stone grinding machine

Ball mill is an effective grinding equipment that uses steel balls as grinding media. It is widely used in the mineral processing, building materials and chemical industries to grind various ores and other materials.

Working princple

The ball mill is composed of main parts such as the feeding section, the discharging section, the rotating section, and the transmission section (reducer, small electric gear, motor, electronic control). The motor drives the reducer, the reducer drives the small gear, the small gear drives the large gear, and the large gear rotates the rotor. The raw material is fed from the inlet and crushed into powder by the collision of balls, ore, and magnetic crushing. The exhaust (ventilation) port is equipped with a filter mesh. With continuous feeding, the pressure pushes the material out of the discharge port, and the small particles are discharged from the mesh to the discharge port, and the large particles continue to be crushed. The small surface area of ​​the slurry in the drum reduces the over-grinding of raw materials and prevents balls from falling. Under the same production conditions, the production capacity of the large-scale factory is greater than that of the surplus factory. Roller bearings are used instead of sliding bearings on both ends of the cylinder to improve energy efficiency.

Advantages

Wide range of applicable materials: ball mills can process more than 100 different mineral materials, such as gold silver iron ore, and can show excellent grinding result whether dry or wet grinding.

Large crushing ratio: Compared with other grinding equipment, ball mills have a higher crushing ratio and can grind materials to finer particle sizes.

Strong production capacity: By adjusting the discharge port, the ball mill can grind materials with different fineness requirements to meet different production needs.

Easy maintenance: The ball mill is made of wear-resistant materials and has a long service life. At the same time, its maintenance process is relatively simple, which saves a lot of time and cost for the company.

Energy saving and environmental protection: Equipped with advanced dust removal and noise reduction equipment, the ball mill not only reduces environmental pollution, but also improving production efficiency.

Specification

Main parts & Spare parts

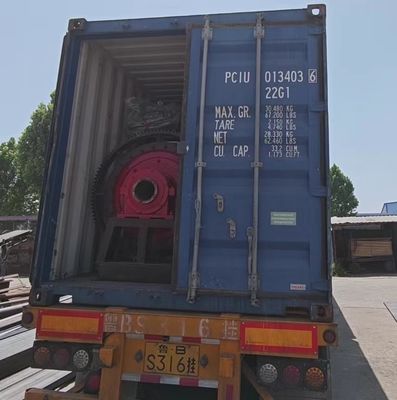

Shipping & Packing

Ascend Ball Mill Processing
