Gold Silver Copper Iron Ore Grinding Machine 900x1800 Model Ball Mill Crusher For Powder Making In Sudan Zambia Zimbabwe

900x1800 ball mill grinding machine 1 2 3 tph gold silver stone grinding

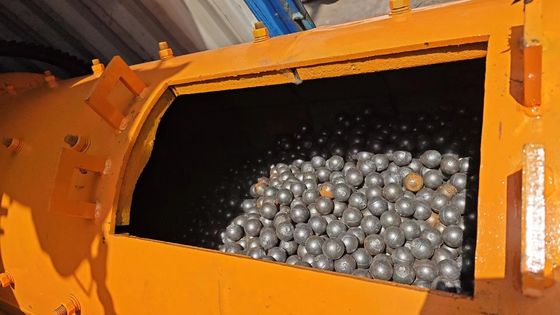

Ball mill is an effective grinding equipment that uses steel balls as grinding media. It is widely used for grinding various ores and other materials in mineral processing, building materials and chemical industries.

Working princple

The ball mill grind machine is composed of feeding part, discharging part, rotating part, transmission part (reducer, small transmission gear, motor, electric control) and other main parts. The motor drive the speed reducer, the speed reducer drive the small gear, the small gear drive the big gear, the big gear drive the rotary body moving. The material enters from the feeding mouth, and ground into powder by the impact of steel balls and ore and self-grinding. There is a grate at the discharging mouth (at the big gear) for filtering. Due to continuous feeding materials, the pressure pushes the material to the discharging mouth, the small particles go out from the grate to the discharging mouth, and the big particles continue to grind. The ore pulp surface in the cylinder is low, which reduces the over-grinding of ore and prevents the steel balls from falling out. Under the same production conditions, the production capacity of the grid mill is greater than that of the overflow mill. Rolling bearings are used at both ends of the cylinder instead of sliding bearings, which is more energy-efficient.

Advantages

Wide range of applicable materials: ball mills can process more than 100 different mineral materials, such as gold silver iron ore, and can show excellent grinding result whether dry or wet grinding.

Large crushing ratio: Compared with other grinding equipment, ball mills have a higher crushing ratio and can grind materials to finer particle sizes.

Strong production capacity: By adjusting the discharge port, the ball mill can grind materials with different fineness requirements to meet different production needs.

Easy maintenance: The ball mill is made of wear-resistant materials and has a long service life. At the same time, its maintenance process is relatively simple, which saves a lot of time and cost for the company.

Energy saving and environmental protection: Equipped with advanced dust removal and noise reduction equipment, the ball mill not only reduces environmental pollution, but also improving production efficiency.

Specification

Main parts & Spare parts

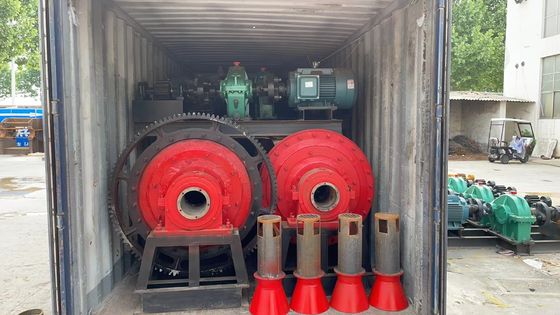

Shipping & Packing

Ascend Ball Mill Processing

Contact us
