Liner Plate Steel Balls Ball Mill Grinder

  • Liner Plate Steel Balls Ball Mill Grinder
  • Liner Plate Steel Balls Ball Mill Grinder
  • Liner Plate Steel Balls Ball Mill Grinder
  • Liner Plate Steel Balls Ball Mill Grinder
Place of Origin China
Brand Name Ascend
Certification CE
Model Number 1200x2400, 1200x1500 1500x3000 1830x3000
Document Product Brochure PDF
Minimum Order Quantity 10 ton
Price USD 900 to 1200 Per ton
Packaging Details Water and rust proof in wooden box or cotainer
Payment Terms T/T, Western Union
Supply Ability 1000 ton per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Ball Mill Spare Parts Application Mining Ore Grinding
Type Casting Alloy Steel Voltage 380V 50Hz
Material Steel,High Manganese Steel,High Cr Cast Iron Dimensions Customer Required
Application Mining Hardness 60-65HRC
Product Name Ball Mill Grinding Media Steel Ball Process Raw Material.smelting.moulding.grinding.quenching.temper.hardness Test
Surface Treatment Grinding Usage For Ball Mill And Rod Mill
Name Grinding Steel Ball
Highlight

Mining ball mill spare parts

,

Liner Plate grinding rod mill

,

Liner Plate Ball Mill Grinder
Leave a Message
Product Description

Mineral ore grinding ball mill machine

The ball mill is a key equipment to grind the crushed materials, and the ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc. And the ball mill can grind various ores and other materials with dry type and wet type, and it’s divided into web overflow type ball mill, dry typeball mill, intermittence ball mill, rod mill, autogenous mill, ceramic ball mill according to its function and working theory.



We can supply high chrome, media chrome and low chrome manganese steel balls, all kinds of liners for many different brands ball mills, if you plan to replace your steel ball, liners, just tell us your requirement about the material and sizes, and get the best offer.

Liner Plate Steel Balls Ball Mill Grinder 0

Working priciple

The ball mill is a homitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

Liner Plate Steel Balls Ball Mill Grinder 1

Product advantages

1. High-efficiency. Our ball mill adopts rolling bearing support instead of sliding bearing support with bearing bush. Therefore, it can save energy by 10-20%.

2. Simple structure, easy maintenance. Ball mill is mainly composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). Convenient installation and debugging , easy to operate.

3. High processing capacity,obvious continuous operation advantages. The capacity can get 4.6-260 t/h.

4. Wide-range usage. Ball mill as an old grinding equipment in market, the technology is mature and operated steadily.

Liner Plate Steel Balls Ball Mill Grinder 2

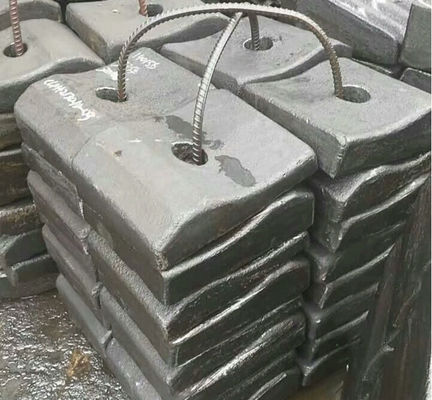

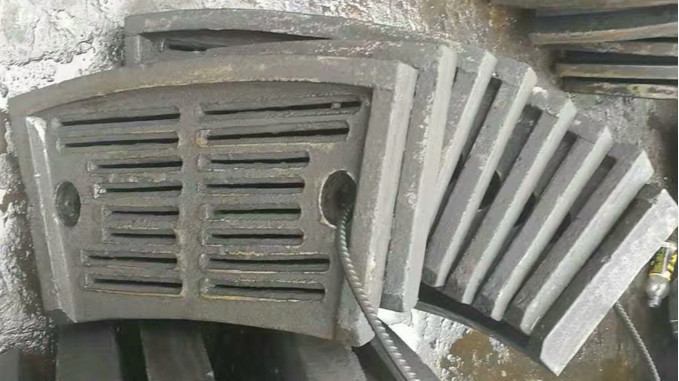

Ball mill liners and steel balls

Liner Plate Steel Balls Ball Mill Grinder 3

Liner Plate Steel Balls Ball Mill Grinder 4

Specifications

Model
Shell rotation speed(r/min)
Ball load
Feeding size
Discharging size
Capacity
Motor power
Weight
(t)
(mm)
(mm)
(t/h)
(kw)
(t)
Ø 900*1800
36-38
1.5
< =20
0.075-0.89
0.65-2
18.5
4.6
Ø 900*3000
36
2.7
< =20
0.075-0.89
1.1-3.5
22
5.6
Ø 1200*2400
36
3
< =25
0.075-0.6
1.5-4.8
30
12
Ø 1200*3000
36
3.5
< =25
0.074-0.4
1.6-5
37
12.8
Ø 1200*4500
32.4
5
< =25
0.074-0.4
1.6-5.8
55
13.8
Ø 1500*3000
29.7
7.5
< =25
0.074-0.4
2.0-5.0
75
15.6
Ø 1500*4500
27
11
< =25
0.074-0.4
3.0-5.0
110
21
Ø 1500*5700
28
12
< =25
0.074-0.4
3.5-6
130
24.7
Ø 1830*3000
25.4
11
< =25
0.074-0.4
4.0-10.0
130
28
Ø 1830*4500
25.4
15
< =25
0.074-0.4
4.5-12
155
32
Ø 1830*6400
24.1
21
< =25
0.074-0.4
6.5-15
210
34
Ø 1830*7000
24.1
23
< =25
0.074-0.4
7.5-17
245
36
Ø 2100*3000
23.7
15
< =25
0.074-0.4
6.5-36
155
34
Ø 2100*4500
23.7
24
< =25
0.074-0.4
8-43
245
42
Ø 2100*7000
23.7
26
< =25
0.074-0.4
8-48
280
50
Ø 2200*4500
21.5
27
< =25
0.074-0.4
9-45
280
48.5
Ø 2200*6500
21.7
35
< =25
0.074-0.4
14-26
380
52.8
Ø 2200*7000
21.7
35
< =25
0.074-0.4
15-28
380
54
Ø 2200*7500
21.7
35
< =25
0.074-0.4
15-30
380
56
Ø 2400*3000
21
23
< =25
0.074-0.4
7-50
245
54



Ball mill liner OEM Casting service

We can cast different type of ball mill liners according to the ball mill liner drawing. So if you want to buy the ball mill liner, having drawing is the best and easiest way for the buyer and seller. The following pictures is the drawing of one type of ball mill liner.

Liner Plate Steel Balls Ball Mill Grinder 5

Ball mill working site

Liner Plate Steel Balls Ball Mill Grinder 6

Liner Plate Steel Balls Ball Mill Grinder 7
