China Ascend Gold Washing Plant Alluvial Placer Ore Dressing Equipment To African Countries
| Place of Origin | China |
|---|---|
| Brand Name | Ascend |
| Certification | ISO9001 |
| Model Number | GST20 GST40 GST50 |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 set |
| Price | USD 3500-30000 Per set |
| Packaging Details | Water and rust proof in wooden box or cotainer |
| Delivery Time | 7-10 working days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10 set per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Gold Washing Plant | Key Word | Placer Gold Trommel Screen Machine |
|---|---|---|---|
| Capacity | 10 To 100 Ton Per Hour | Applicable Industry | Energy&Mining |
| Warranty Period | 1 Year | Core Selling Point | High Productivity |
| Highlight | China Gold Washing Plant,Alluvial Placer Gold Washing Plant,African countries Gold Washing Plant |
||
Product Description
Gold trommel washing plant for alluvial sand gold mining with100 200 tph capacity
Golden trommel screen is a set of equipment that can be moved or installed. It include feedig hopper, a trommel screen and a vibrating films. It mainly uses water pumps and high-pressure jet sand or river pebbles to selectively wash gold particles or gold powder.
Features of Drum Scrubber Washing Machine
- Gold mining trommel screen includes hopper, water pump, water pipe, diesel engine/motor, wheels, can be easily moved, and is specially designed for processing alluvial gold, river placer gold, diamonds, etc.
- Gold trommel screen is usually used in the primary separation stage of placer gold mining to wash and screen gold ore. The upper size is always regarded as useless material. The bottom size containing gold is usually processed continuously by centrifugal concentrator or gold tank to upgrade gold ore. The concentrate of centrifugal concentrator can be processed by shaking table, which is used to separate gold from other minerals.
Gold mining trommel screen description:
- Gold trommel screen can be used for washing and screening of gold ore.
- Gold trommel screen offers expanded processing capacity comparable to all competitor mobile gold washing plant rotary screen equipment.
- The average processing capacity of gold rotary screen is 100-300 m³/h or 170-510 t/h, converted at 1.7 t material weight per m³.
Designing & Building Custom Gold Mining Trommel :
Give us the details of your mining and we can design and build a plant specific to your mineral. If you need help getting a plant up and running on site, we can provide those services based on decades of mining success.
Knowing the mining area will help us understand your situation. Carefully review graves and environment, along with the historical information.

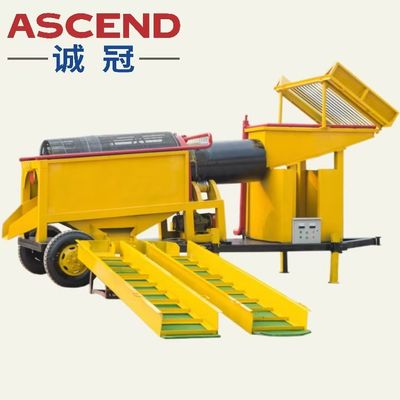

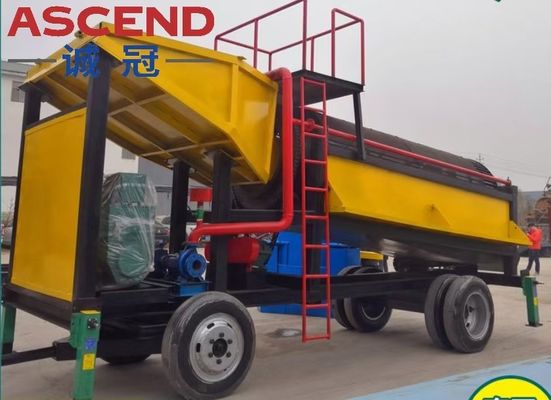

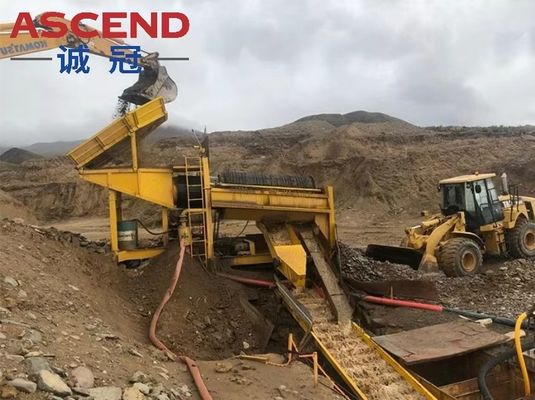

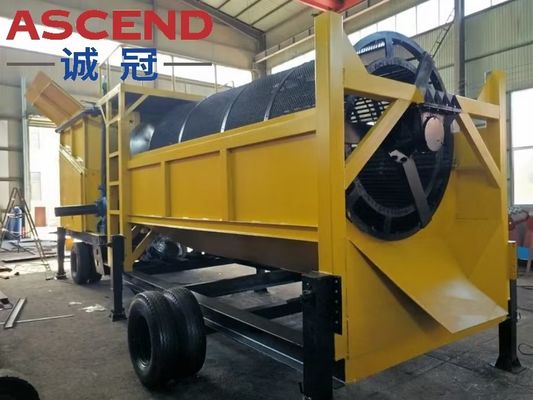

Product pictures
Advantages of gold trommel equipment:
- It is suitable for applications ranging from small to large materials, and it is easy to use. It is an economical option.
- Multiple filters with different heavyweight drums to separate the objects better.
- This design allows the end user to switch displays depending on the size of the network.
- Multilayer displays improve the display process.
- There is a replaceable film plate that allows you to replace worn parts.
- Trommel screen are efficient and have a large capacity to process different sizes of materials. I have a
- The screen features a unique design that allows for high capacity, high-resolution performance, and high resolution. The longevity of the film It also prevents things from getting stuck.
Description of the placer gold washing plant.

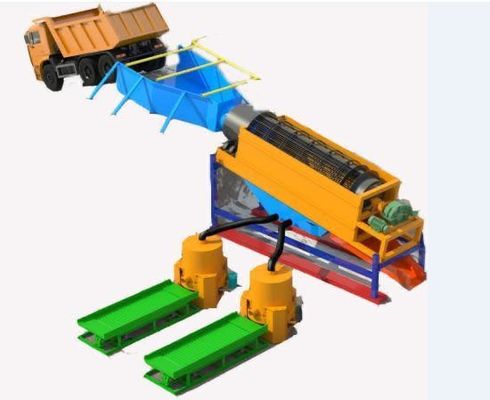

After the equipment is fully installed, river sand is usually feed into the hopper using an excavator or crane, and then the sand is transported to the trommel screen. As the trommel screen rotates, large sand particles larger than 8 mm are screened out, and small sand particles smaller than 8 mm are transferred to a centrifugal gold concentrator or a vibrating gold sluice (we usually recommend the concentrator because it can achieve high recovery rates of sand various gold particles from 40 mesh to 200 mesh). The concentrator is followed by a gold sluice with a gold blanket to recover the remaining gold in the concentrator.
Specification
| SPECIFICATIONS OF GOLD EXTRACTION EQUIPMENT FOR WASHING GOLD SEPARATOR MACHINE | ||||
| Model | GTS20 | GTS50 | MGT100 | MGT200 |
| Parameters | ||||
| Size /mm | 6000x1600x2499 | 7000*2000*3000 | 8300*2400*4700 | 9800*3000*5175 |
| Capacity | 20-40 | 50-80 tph | 100-150 tph | 200-300 tph |
| Power | 20 | 30 kw | 50 kw | 80 kw |
| Trommel Screen /mm | 1000x2000 | φ1200*3000 | φ1500*3500 | φ1800*4000 |
| Sluice Box | 2 set | 2 sets | 3 sets | 4 sets |
| Water Supply /m³ | 80m³ | 120 m³ | 240 m³ | 370 m³ |
| Recovery Rate | 95% | 98% | 98% | 98% |
The gold centrifugal concentrator is suitable for the concentration of gold ore from 200 to 40 mesh size. It uses gravity centrifugal force to collect gold concentrate from river sand or soil. The recovery rate of free gold particles can be as high as 90%. It is the perfect partner for gold trommel screen plant.
Gold sluice with blanket
Shaking table
After collect the gold concentrate fromo the centrifugal concentrator and gold sluice blanket, the most common way is then put it on the shaking table to further improve the gold grade.
Mercury Amalgamation barrel or small ball mill.
The gold ore concentrate collected from the shaking table will be put in the small ball mill, or we call it mercury amalgamation barrel. Then it can mix with the mercury and form the gold and mercury mixture.
Electric gold melting furnace
After get the mixture of gold and mercury, you can put it in the elctric gold melting furnace and heat it, then you can get the pure gold bar.
