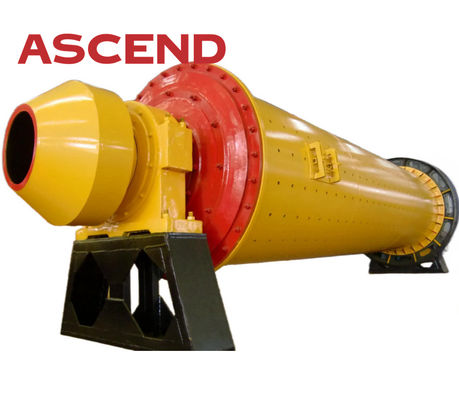

China Ascend Wet Grinding Ball Mill 1200x2400 1200x4500 With 5 Tons Per Hour Capacity For Gold Silver Iron Ore Grinding

Ball mill grinding machine for rock ore powder making

Ball mill is a key equipment for grinding crushed materials into powder. It is suitable for grinding various ores and other materials, and is widely used in mineral processing, building materials, chemical industry and other industries. Steel balls are used as grinding media, and the materials are finely ground through mutual impact and grinding between the steel balls and the materials. According to different grinding methods, it can be divided into dry type and wet type. According to different discharge methods, it can be divided into large-caliber discharge pump and overflow discharge pump.

Working princple

The ball mill is composed of the feeding part, the discharging part, the rotating part, the transmission part (reducer, small transmission gear, motor, electronic control) and other main parts. The motor drives the reducer, the reducer drives the small gear, the small gear drives the large gear, and the large gear drives the rotor to move. The material enters from the feed port and is crushed into powder after the impact and self-crushing of the steel ball and the ore. There is a grid at the exhaust port (large gear) for filtering. As the material is continuously fed, the pressure forces the material to flow out through the discharge port, small particles are discharged from the grid, and large particles continue to be crushed. The low surface area of ​​the slurry in the cylinder can reduce the excessive crushing of the ore and prevent the steel ball from falling. Under the same production conditions, the production capacity of the grate mill is greater than that of the overflow mill. It uses rolling bearings instead of sliding bearings at both ends of the cylinder, which is more energy-efficient.

Advantages

Wide range of applicable materials: The ball mills can process more than 100 different mineral raw materials. It can be operated dry or wet, and can also be dried and ground at the same time. While grinding, the materials are mixed, stirred, and homogenized (separate grinding technology, "blending" cement).

Large crushing ratio: Compared with other grinding equipment, the ball mill has a higher crushing ratio and can grind materials to finer particle sizes.

Strong production capacity: By adjusting the discharge mouth, the ball mill can grind materials with different fineness requirements to meet different production needs.

Easy maintenance: The ball mill is made of wear-resistant materials and has a long service life. At the same time, its maintenance process is relatively simple, which saves a lot of time and cost for the enterprise.

Energy saving and environmental protection: Equipped with advanced dust removal and noise reduction equipment, the ball mill reduces environmental pollution while also improving production efficiency.

Specification

Main parts & Spare parts

Factory overview

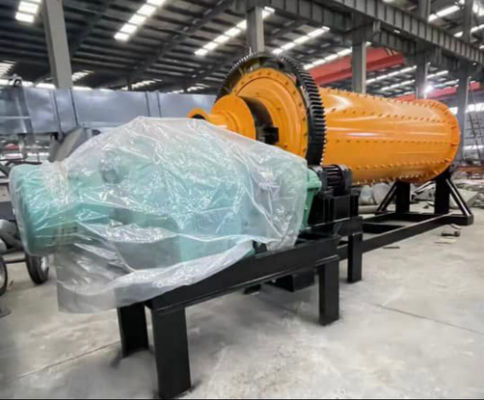

Shipping & Packing

Contact us
